P-EX2002 Stainless steel

Model Number: [ P-EX2002 ]

Manufactured by: Excell


Product Description:

P-EX2002 IP67 Waterproof Indicator

Dimensions: 256 x 170mm (W x H)
Display: LED, 6 Digits, 14 mm (Height)
Power Source : AC 100V~240V, 50/60 Hz

*IP 67 waterproof: moisture-proof, mist-proof, with IP67 waterproof and dustproof
* Up to 1/30,000 display resolution (Internal resolution 1/300,000)
* Stand alone batching mode or connect to PLC for external system control.
* Built-in batching / dosing functions
* Manual / automatic discharge operation
* Set cycle times in a batch
* Totalize weight and number of cycles
OPTIONS.
* OP-01 RS422/485/232 serial interface
* OP-03 16 Bit Analogue current/voltage output interface (4 ~ 20 mA / 0 ~ 10V)
* OP-04 Control I/O (4 In / 4 Out) + Setpoint (BCD code)
* OP-05 Control I/O (8 In / 8 Out)

* Key in the signal voltage value (mV/V) directly via the keyboard, no need to apply any weight
to the bottom work to calibrate the weight
* Memorized load cell output voltage (mV/V) for future maintenance
* Adjustable filter: prevent vibration of environment
* RS232C bi-directional and current loop one way serial interface
Dimensions: 256 x 170mm (W x H)
Display: LED, 6 Digits, 14 mm (Height)

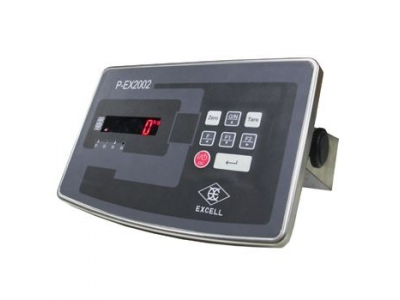

Product Image
