ME-01

Model Number: [ ME-01 ]

Manufactured by: Axis


Product Description:

Type ME-01/P/LCD
Range (verification division) max 6000
Readout unit (d) 1, 2, 5, 10, ... (g, dkg, kg)
Verification unit (e) to II and III class scales
Tare range -Max
Working temperature -10÷40°C
Dimensions 217,5x143x73mm
Supply ~230V 50Hz or 12V (option); accumulator (option)
Wieght 0,6kg
Protection level IP44
Applied error fraction 0,5
Lowest possible input signal 0,3 μV
Sensor impedance 40÷4000 Ohm
Sensors supply 5V AC 25Hz
Connecting sensors system 4 or 6 wire system

Housing ABS antistatic plastic
Keyboard standard scale keyboard
Display LCD 18mm

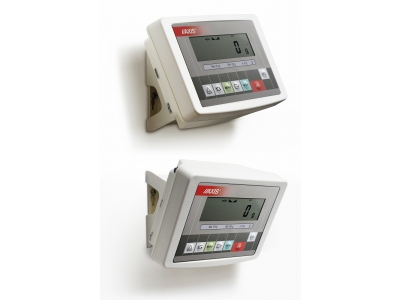

Product Image
