VT200 mains 85-265VAC

Model Number: [ VT200 ]

Manufactured by: VISHAY


Product Description:

The VT200 range are versatile, general purpose weight indicators, manufactured according to the highest quality standards.
User friendly, simple and fast in operation, with an attractive stainless steel design and sophisticated hardware and software features, the models represent powerful solutions to a multitude of weighing applications.


Applications

• Bench and floor scales, weighbridges and dual scale applications requiring weight indication and professional documentation
• Silo weighing – weight indication and data collection
• Piece counting (single or dual scale configurations)
• Computer based weighing systems

Options
• Second serial interface RS485 or RS232 with protocol output,
• Analogue output (current or voltage)
• Second analogue input for second scale connection
• Real time clock

Features
• Approved for 10,000divisions
• Up to 70 measurements per second
• Alibi-memory for 10,000 records
• Excitation for up to 10 strain gauge load cells, 350 Ohm each (or more)
• Large, 6 digit LED (20mm) or LCD (16mm) display with status announciators
• 8 keys membrane keyboard with tactile feedback
• Single or dual interval / range
• Analogue and digital filtering
• Standard RS232 for PC or printer connection
• 1 digital input (programmable as tilt input or to tare scale remotely or for other purposes)
• 2 digital outputs (programmable as weight set points or as other control outputs)
• Stainless steel enclosure (IP65) or powder coated aluminium (IP40)

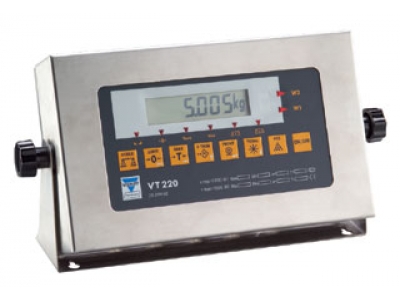

Product Image
