ST-EX

Model Number: [ ST-EX ]

Manufactured by: Bizerba


Product Description:

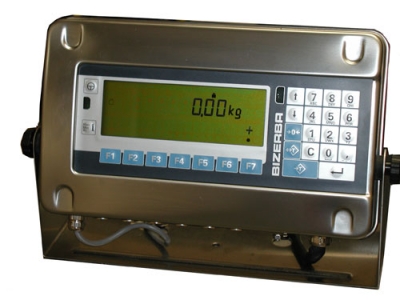

Stainless steel weighing indicator, ATEX approved for use in Zones 1 & 21, rated II2G EEx ib m IIC T4, IID T 100ºC.
Sealing protection to IP68, bench or wall mounting (panel mounted option). Backlit graphic LCD with 18mm digit weight display and a 21 digit 12mm display for prompts & functions.
Numeric keypad with alpha entry facility and 7 ‘hot’ keys for customer configuration.
110-230VAC power supply contained within the indicator housing for use in the hazardous area or alternatively there is a 12V battery option (one A/D only with this option. Counting software included.
30000 divs max.
Add on options – Dosing software, interface modules, 2nd A/D
Approved up to 6000 divs or 2 x 3000 divs multi interval

OPTIONS.

ST-EX indicator with 1 A/D pcb, 110-230VAC mains
ST-EX indicator with 1 A/D pcb, 12V 20Ah battery with charger
Spare battery
Panel mounted ST-EX indicator with 1 A/D pcb, 110-230VAC mains
2nd A/D pcb
Dosing control software & 4 + 4 I/O’s (110-230VAC)
Serial I/O card + data buffer for PC/printer link
4-20mA analog output
3m cable with connectors needed for all I/O’s and comms
Extra cable per metre
CBM910 tally roll printer in safe area (needs I/O card/data buffer etc)Label printer
Relay boxes
