TLM8 CANOPEN

Model Number: [ N/A ]

Manufactured by: Laumas Electronics


Product Description:

Weight transmitter with backlit graphic LCD display, 60x32 mm, 128x64 pixels. Four-key keypad for the system calibration. TEST key for direct access to the diagnostic functions. Dimensions: 148 x 92 x 60 mm.

The TLM8 offers the benefits and performance of an advanced digital weighing system even using analog load cells. 8 independent reading channels for load cells. Digital equalization. Automatic diagnostics.

•16-bit Analog output: 0/4-20 mA; 0-5/10 V
•Slave CANopen port, max 99 instruments
•RS485 port (Modbus RTU/Laumas ASCII protocol)
•3 logic inputs, 5 relay outputs
•OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI
•Mounting on Omega/DIN rail for back panel or junction box
•8 channels A/D converter - 24bit (16000000 points) 4.8 kHz
•Display range 999999

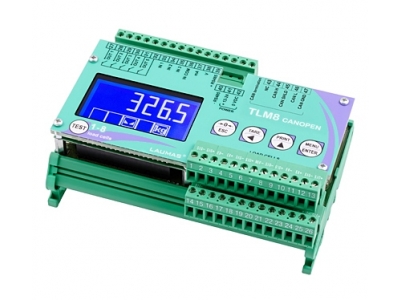

Product Image
